Structural Panels

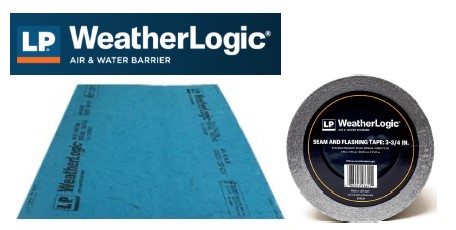

LP Structural Solutions - WeatherLogic

  • "Helps safeguard the home from water intrusion for a tighter building envelope while allowing moisture vapor to escape."
  • "Versatile roof and wall panels add greater cross-panel strength and stiffness for enhanced structural capacity."
  • "30-Year Limited Warranty"
  • "Structural 1 Sheathing"
  • The sheathing and seam tape system is designed to withstand exposure to the elements for up to 180 days before being covered by exterior cladding.
Product Size/Thickness Length
LP Weather Logic Seam Tape 3-3/4'' 90'

OSB - LP Weather Logic  7/16'' 4' x 8'
OSB - LP Weather Logic  7/16'' 4' x 9'
OSB - LP Weather Logic  7/16'' 4' x 10'
OSB - LP Weather Logic  1/2'' 4' x 8'
OSB - LP Weather Logic  5/8'' 4' x 8'

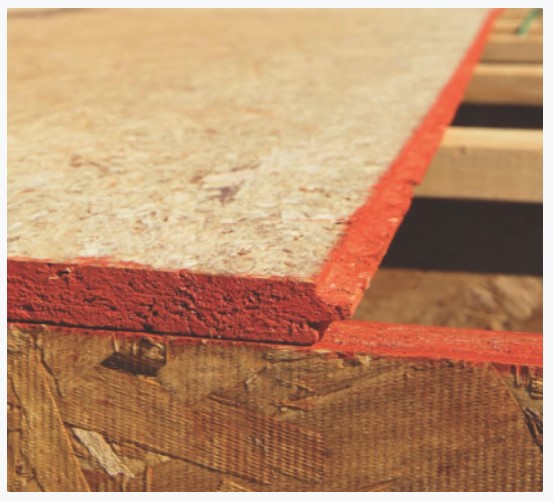

LP Structural Solutions - Legacy

  • "APA-verified as one of the industry’s strongest, stiffest sub-floors alongside exceptional fastener holding."
  • "Sub-floor sheathing panels are packed with more strands, resin and wax to provide exceptional resistance to moisture and edge swell."
  • "Wood strands are coated with water-resistant resins using Gorilla Glue Technology® for exceptional stiffness."
  • "LP offers a unique Covered Until It’s Covered® No-Sand Warranty PLUS a Lifetime Limited Warranty that lasts as long as the home."
Product Size/Thickness Length
OSB - LP Legacy T&G Subfloor 23/32'' 4' x 8'

LP Structural Solutions - TopNotch 350

  • "Incredible strength, stiffness and moisture resistance."
  • "Self-spacing tongue and groove design speeds installation."
  • "Unique notch system to help drain rainwater away during construction."
  • 200 day no sand warranty.
Product Size/Thickness Length
OSB - LP TN350 T&G Subfloor 23/32'' 4' x 8'

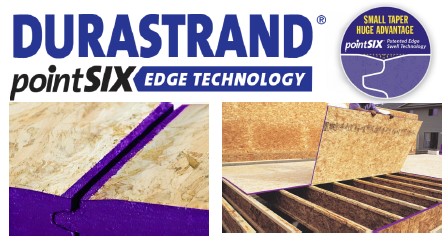

Durastrand

  • "Patented tapered edge that is designed to offset the effect moisture has on panel edges."
  • "Increase productivity by eliminating the need to sand joints."
  • "Engineered for strength, durability and overall performance."
  • "One-year no sand guarantee."
  • "Backed by a 50-year limited warranty."
Product Thickness Length
23/32 Durastrand T&G OSB Sub-floor 3/4" 4' x 8'

Oriented Strand Board

  • Versatile engineered wood panel used in various applications, including subflooring, wall and roof sheathing, and furniture. Often an alternative to plywood, often preferred for its cost-effectiveness and strength in structural applications.

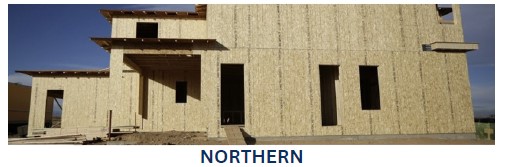

  • Northern OSB is typically made from hardwood like Aspen, while Southern OSB is primarily made from Southern Yellow Pine.
  • Northern OSB generally being lighter and easier to handle, and potentially having a tighter edge due to more strands per board.
  • Southern OSB, with its use of Southern Yellow Pine, can be more resistant to warping and shrinkage, making it suitable for certain applications like subfloors.
Product Thickness Length
OSB - Southern Board 7/16" 4' x 8'
OSB - Southern Board 1/2" 4' x 8'
OSB - Southern Board 19/32" 4' x 8'



Product Thickness Length
OSB - Northern Board 7/16" 4' x 8'
OSB - Northern Board 7/16" 4' x 9'
OSB - Northern Board 7/16" 4' x 10'
OSB - Northern Board 1/2" 4' x 8'
OSB - Northern Board 5/8" 4' x 8'

OSB - 23/32 SQ Edge Northern Board 3/4" 4' x 8'
OSB - 23/32 T&G Northern Board 3/4" 4' x 8'

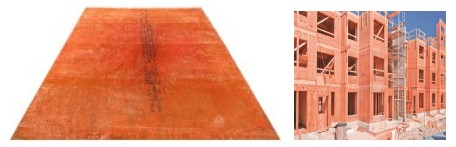

Fire Retardant Pine CDX

  • Used in residential and commercial construction for its enhanced fire resistance, particularly in areas where fire safety is critical, such as interior walls, ceilings, and subflooring.
  • Commonly used in homes, outbuildings and commercial buildings such as schools, hospitals and recreational buildings.
Product Thickness Length
15/32 Interior Fire Rated SYP Plywood 1/2" 4' x 8'
19/32 Interior Fire Rated SYP Plywood 5/8" 4' x 8'
23/32 Interior Fire Rated SYP Plywood 3/4" 8' x 4'

Pine CDX

  • Commonly used for its strength, versatility, and affordability.
  • Has a wide range of applications, from structural sheathing to subflooring and roofing.
  • Used in temporary exterior applications, such as construction site hoarding and temporary enclosures.
Product Thickness Length
11/32 Pine Plywood PRS 3/8" 4' x 8'
15/32 Pine Plywood PRS - 4 PLY 1/2" 4' x 8'
19/32 Pine Plywood PRS 5/8" 4' x 8'
23/32 Pine Plywood PRS 3/4" 4' x 8'

Pressure Treated Pine

  • Primarily used for outdoor applications where wood is exposed to moisture, rot, and insects.
Product Thickness Length
15/32 CD Treated Pine Plywood 1/2" 4' x 8'
23/32 CD Treated Pine Plywood 3/4" 4' x 8'
